Trailer Wiring Reference Chart

Trailer Wiring Reference Chart
Loading... 120 view(s) 2 min read
Trailer Wiring Reference Chart

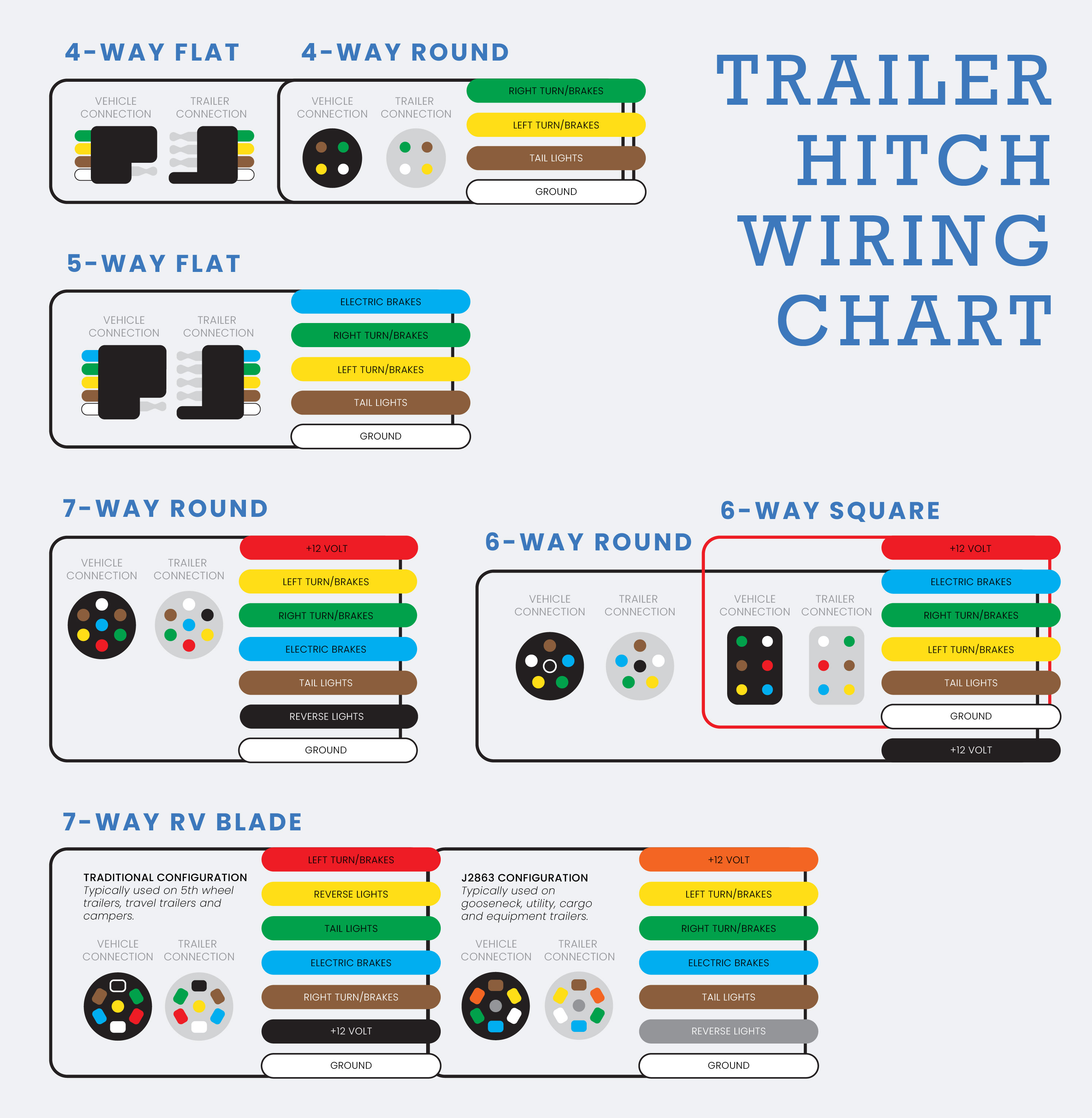

Trailer wiring can be confusing so we have put together color-coded diagrams to help you out. If you have any additional questions or need any help don't hesitate to contact us.

7-Way RV Blade Traditional Configuration

7-Way Heavy-Duty Towing Configuration

RV Configuration Differences


7-Way RV Blade Traditional Configuration
Typically used on 5th wheel trailers, travel trailers, and campers.


7-Way RV Blade Heavy-Duty Towing Configuration (SAE J2863)
Typically used on gooseneck trailers, utility trailers, cargo trailers & equipment trailers. (***Wiring colors vary by manufacturer***)
Vehicle Side Trailer Side
7-Way RV Blade- Traditional


Vehicle Side Trailer Side
7-Way Blade Heavy-Duty Towing
Function Color
+12 Volt Black
Electric Brakes Blue
Reverse Lights Yellow
Left Turn / Brakes Red
Right Turn / Brakes Brown
Tail Lights Green
Ground White
Function Color
+12 Volt Orange
Electric Brakes Blue
Reverse Lights Gray
Left Turn / Brakes Yellow
Right Turn / Brakes Green
Tail Lights Brown
Ground White

7-Way Round

6-Way Round

6-Way Square
Vehicle Side Trailer Side
7-Way Round
Vehicle Side Trailer Side
6-way Round
Vehicle Side Trailer Side
Function Color
Auxiliary Power Red
Electric Brakes Blue
Reverse Lights Black
Left Turn / Brakes Yellow
Right Turn / Brakes Green
Tail Lights Brown
Ground White
Function Color
+12 Volt Black
Electric Brakes Blue
Left Turn / Brakes Yellow
Right Turn / Brakes Green
Tail Lights Brown
Ground White
Function Color
+12 Volt Red
Electric Brakes Blue
Left Turn / Brakes Yellow
Right Turn / Brakes Green
Tail Lights Brown
Ground White

5-Way Flat

4-Way Flat

4-Way Round
Vehicle Side Trailer Side
5-Way Flat
Vehicle Side Trailer Side
4-way Flat
Vehicle Side Trailer Side
4-Way Round
Function Color
Reverse Lights Blue
Left Turn / Brakes Yellow
Right Turn / Brakes Green
Tail Lights Brown
Ground White
Function Color
Left Turn / Brakes Yellow
Right Turns / Brakes Green
Tail Lights Brown
Ground White
Function Color
Left Turn / Brakes Yellow
Right Turns / Brakes Green
Tail Lights Brown
Grounds White
