Draw-Tite Class V 2-1/2 inch Trailer Hitch Receiver fit Select Ram 2500 & 3500 Models

Name: Rigid Hitch
Address: 3301 Burnsville Pkwy, Burnsville, MN, 55337, US
Telephone: 800-624-7630
Price range: $$

Draw-Tite

SKU

45509

List Price: $1132.95

$565.16

Out-Of-Stock

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

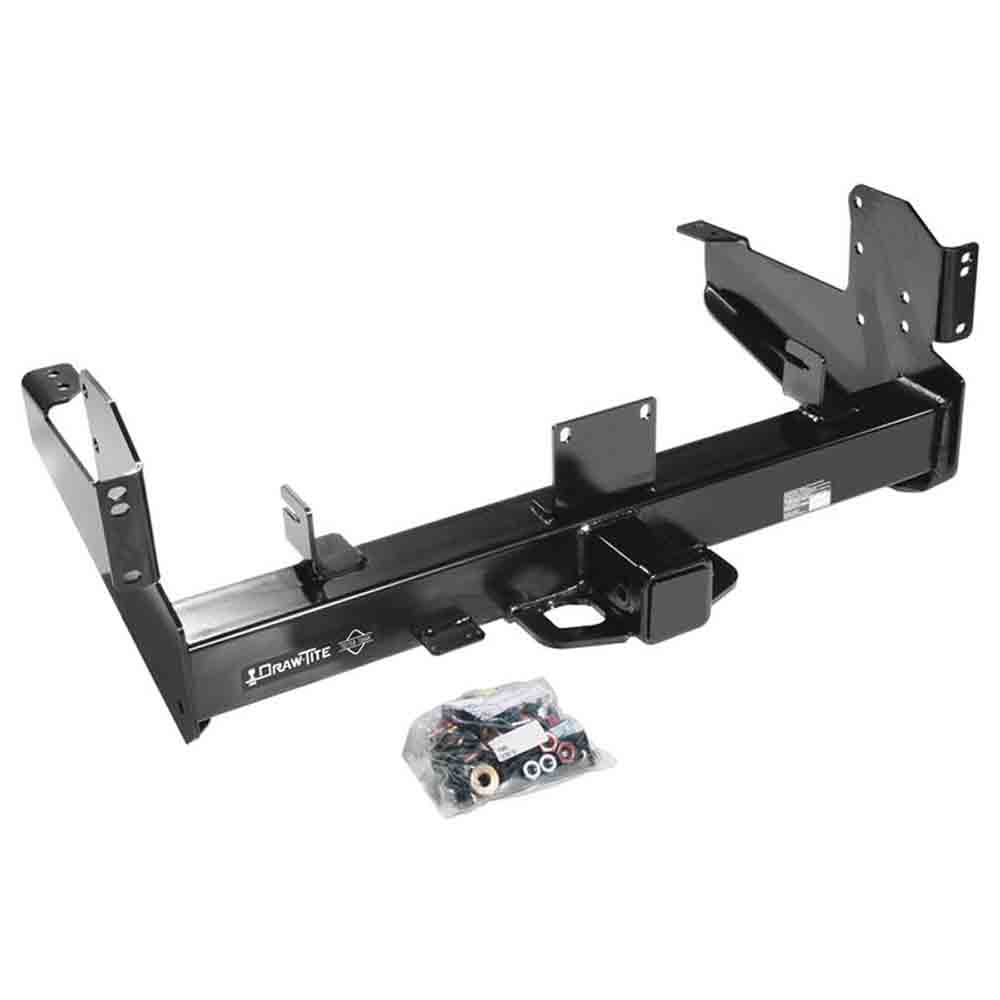

Draw-Tite 45509 Class V 2-1/2 inch Trailer Hitch Receiver Fits

2011-2024 Ram 2500 & 3500 Models
2003-2010 Dodge Ram 2500 & 3500 Models

2011 and newer models - Rear spring hanger brackets must be mounted above the frame or hitch cannot be installed.

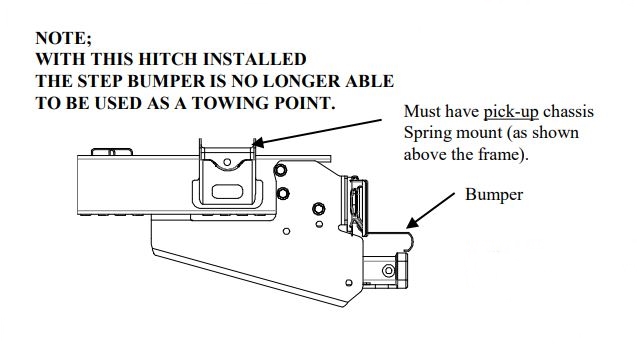

There have been isolated cases of trucks with optional bottom of rear frame spring shackle mounts. These bottom of frame shackle mounts will not allow the hitch to be installed. Inspect truck for these shackles before ordering hitch. See diagram top left corner of sheet 3 of the 45509 instructions, this diagram shows a top of frame mounted spring shackle that is required for hitch to install.

Diagrams

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

Class V hitches are very similar to Class III & IV hitches except for the weight ratings. Class V hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches. Class V hitches used as Weight Carrying are rated up to 20,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 2,700 lbs.

Hitches that are used for Weight Distributing are rated up to 20,000 lbs. Gross Trailer Weight (WDGTW) with a maximum trailer Tongue Weight (WDTW) of 2,700 lbs. Please see the Specification tab above for the weight ratings of this hitch.

This style of hitch uses a 2-1/2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch a weight distribution system is required. Class V hitches attach to the vehicle frame only.

2011 and newer models - Rear spring hanger brackets must be mounted above the frame or hitch cannot be installed.

Always consult your owner's manual for vehicle rating.

Requires temporary removal of bumper during installation
Includes 2 & 4 WD models with heavy duty suspension. 3/4 and 1 ton vehicles only.
Will not fit models with 34 inch wide frames.
Hitch crosstube is visible beneath bumper
Requires removal of factory hitch if equipped
With this hitch installed the step bumper is no longer able to be used as a towing point.

Optional Accessories

ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
Hardwire Multi-Fit Tail Light Wiring Harness P/N 20252

Click Here for a link to our complete Ball Mount Selection

Specifications

Specifications
Brand	Draw-Tite
Receiver Size	2-1/2 inch
Gross Towing Weight (WC)	18,000 lbs.
Tongue Weight	2,000 lbs.
Dist Gross Trailer Weight (WD)	18,000 lbs.
Dist Tongue Weight	2,500 lbs.
Hitch Class	Class V
Finish	Black Powder Coat
Installation Time	95 minutes
Warranty	Limited Lifetime Warranty

Instructions

CLICK HERE

Compatibility

Year	Make	Model	Category	Description
2025	Ram	2500	Rear Mounted Receivers	All Models
2025	Ram	3500	Rear Mounted Receivers	All Models
2024	Ram	2500	Rear Mounted Receivers	All Models
2024	Ram	3500	Rear Mounted Receivers	All Models
2023	Ram	2500	Rear Mounted Receivers	All Models
2023	Ram	3500	Rear Mounted Receivers	All Models
2022	Ram	2500	Rear Mounted Receivers	All Models
2022	Ram	3500	Rear Mounted Receivers	All Models
2021	Ram	2500	Rear Mounted Receivers	All Models
2021	Ram	3500	Rear Mounted Receivers	All Models
2020	Ram	2500	Rear Mounted Receivers	All Models
2020	Ram	3500	Rear Mounted Receivers	All Models
2019	Ram	2500	Rear Mounted Receivers	All Models
2019	Ram	3500	Rear Mounted Receivers	All Models
2018	Ram	2500	Rear Mounted Receivers	All Models
2018	Ram	3500	Rear Mounted Receivers	All Models
2017	Ram	2500	Rear Mounted Receivers	All Models
2017	Ram	3500	Rear Mounted Receivers	All Models
2016	Ram	2500	Rear Mounted Receivers	All Models
2016	Ram	3500	Rear Mounted Receivers	All Models
2015	Ram	2500	Rear Mounted Receivers	All Models
2015	Ram	3500	Rear Mounted Receivers	All Models
2014	Ram	2500	Rear Mounted Receivers	All Models
2014	Ram	3500	Rear Mounted Receivers	All Models
2013	Ram	2500	Rear Mounted Receivers	All Models
2013	Ram	3500	Rear Mounted Receivers	All Models
2012	Ram	2500	Rear Mounted Receivers	All Models
2012	Ram	3500	Rear Mounted Receivers	All Models
2011	Ram	2500	Rear Mounted Receivers	All Models
2011	Ram	3500	Rear Mounted Receivers	All Models
2010	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2010	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2009	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2009	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2008	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2008	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2007	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2007	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2006	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2006	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2005	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2005	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2004	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2004	Dodge	Ram 3500	Rear Mounted Receivers	All Models
2003	Dodge	Ram 2500	Rear Mounted Receivers	All Models
2003	Dodge	Ram 3500	Rear Mounted Receivers	All Models

Show All Compatible Vehicles
