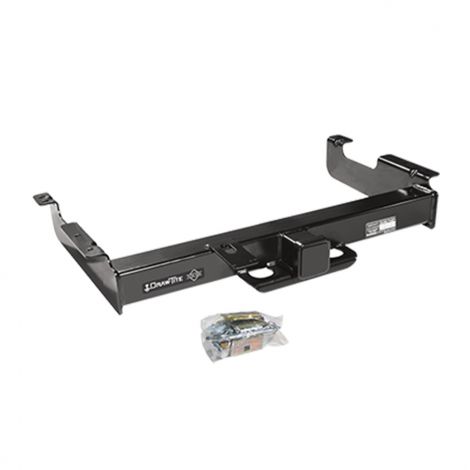

Draw-Tite Class V 2-1/2 inch Trailer Hitch Receiver fits Select GMC Savana Van & Chevrolet Express Van
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Draw-Tite Class V 2-1/2 inch Trailer Hitch Receiver Fits Select GMC Full Size Savana Van and Chevrolet Full Size Express Van
Product Details
Class V hitches are very similar to Class III & IV hitches except for the weight ratings. Class V hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches. Class V hitches used as Weight Carrying are rated up to 20,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 2,700 lbs.
Hitches that are used for Weight Distributing are rated up to 20,000 lbs. Gross Trailer Weight (WDGTW) with a maximum trailer Tongue Weight (WDTW) of 2,700 lbs. Please see the Specification tab above for the weight ratings of this hitch.
This style of hitch uses a 2-1/2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch a weight distribution system is required. Class V hitches attach to the vehicle frame only.
Always consult your owner's manual for vehicle rating.
Optional Accessories
- ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
- Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
- Custom Fit T-Connector with 4-Flat End for 2003-2014 GMC & Chevy 1500 Full Size Vans & 2003-2024 GMC & Chevy 2500 & 3500 Full Size Vans Wiring Light Kit P/N 118392
- Custom Fit Rigid Brand T-Connector with 4-Flat End for 2003-2014 GMC & Chevy 1500 Full Size Vans & 2003-2024 GMC & Chevy 2500 & 3500 Full Size Vans Wiring Light Kit P/N CM-55540
Click Here for a link to our Ball Mount Selection
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 2-1/2 inch |
| Gross Towing Weight (WC) | 12,000 lbs. |
| Tongue Weight | 1,200 lbs. |
| Dist Gross Trailer Weight (WD) | 14,000 lbs. |
| Dist Tongue Weight | 1,700 lbs. |
| Hitch Class | Class V |
| Finish | Black Powder Coat |
| Installation Time | 45 minutes |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2025 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2025 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2024 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2024 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2023 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2023 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2022 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2022 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2021 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2021 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2020 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2020 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2019 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2019 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2018 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2018 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2017 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2017 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2016 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2016 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2015 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2015 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2014 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2014 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2013 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2013 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2012 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2012 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2011 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2011 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2010 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2010 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2009 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2009 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2008 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2008 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2007 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2007 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2006 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2006 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2005 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2005 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2004 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2004 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2003 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2003 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2002 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2002 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2001 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2001 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2000 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2000 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1999 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1999 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1998 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1998 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1997 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1997 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1996 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1996 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
