Titan Class IV Trailer Hitch, 2-1/2 Inch Square Receiver fits Select Ford F-250 & F-350
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me

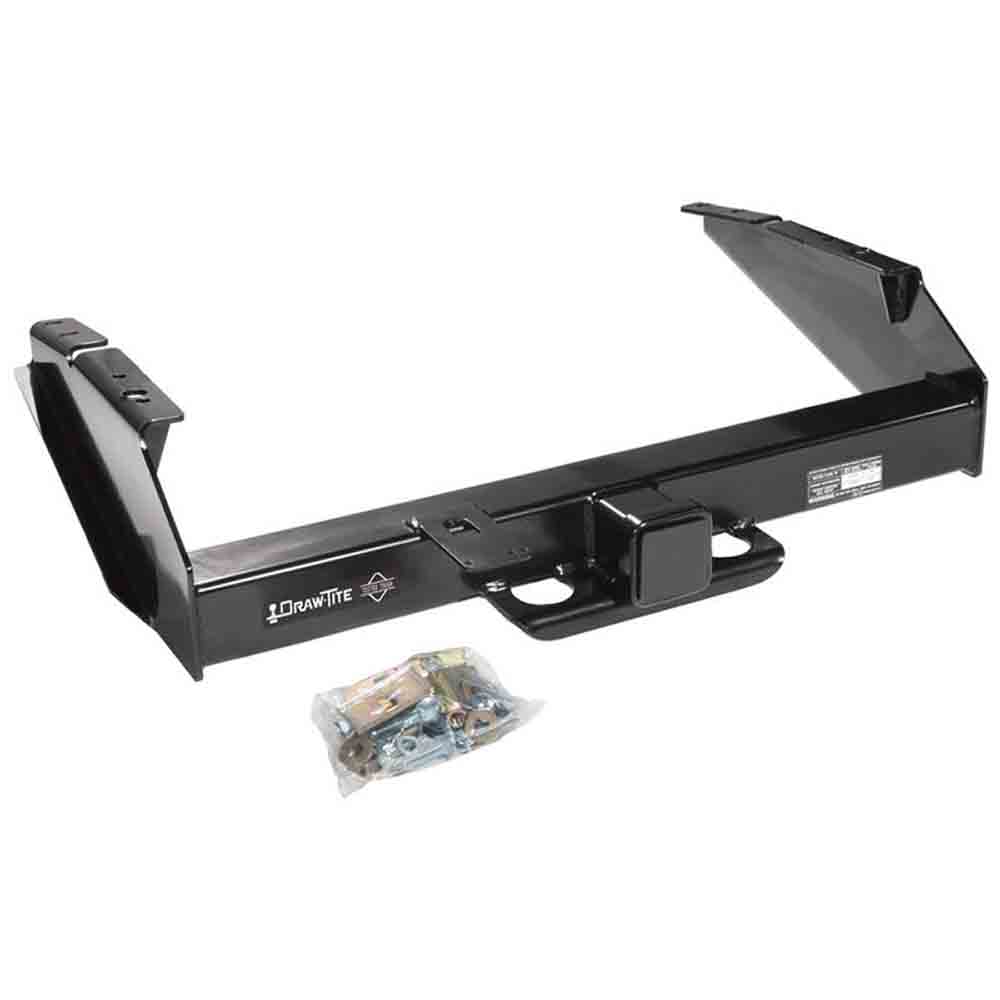

Draw-Tite 45502 Class V 2-1/2 inch Trailer Hitch Receiver Fits
- 1997 Ford F-250 HD & F-350 HD
- 1986-1996 Ford F-250
- 1986-1996 Ford F-350 except with Cab & Chassis
- 1980-1986 Ford F-250 & F-350 Except with Custom Fascia
Product Details
Class V hitches are very similar to Class III & IV hitches except for the weight ratings. Class V hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches. Class V hitches used as Weight Carrying are rated up to 20,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 2,700 lbs.
Hitches that are used for Weight Distributing are rated up to 20,000 lbs. Gross Trailer Weight (WDGTW) with a maximum trailer Tongue Weight (WDTW) of 2,700 lbs. Please see the Specification tab above for the weight ratings of this hitch.
This style of hitch uses a 2-1/2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch a weight distribution system is required. Class V hitches attach to the vehicle frame only.
Always consult your owner's manual for vehicle rating.
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 2-1/2 inch |
| Gross Towing Weight (WC) | 12,000 lbs. |
| Tongue Weight | 1,200 lbs. |
| Dist Gross Trailer Weight (WD) | 14,000 lbs. |
| Dist Tongue Weight | 1,700 lbs. |
| Hitch Class | Class V |
| Installation Time | 45 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 1997 | Ford | F-250 | Rear Mounted Receivers | Heavy Duty |
| 1997 | Ford | F-350 | Rear Mounted Receivers | Heavy Duty |
| 1996 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1996 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1995 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1995 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1994 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1994 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1993 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1993 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1992 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1992 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1991 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1991 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1990 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1990 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1989 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1989 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1988 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1988 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1987 | Ford | F-250 | Rear Mounted Receivers | All Models |
| 1987 | Ford | F-350 | Rear Mounted Receivers | Except Cab and Chassis |
| 1986 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1986 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1985 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1985 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1984 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1984 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1983 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1983 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1982 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1982 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1981 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1981 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
| 1980 | Ford | F-250 | Rear Mounted Receivers | Except With Custom Fascia |
| 1980 | Ford | F-350 | Rear Mounted Receivers | Except With Custom Fascia |
