Draw-Tite Class II 1-1/4 Inch Trailer Hitch Receiver fits Select Toyota RAV4, Lexus NX250, NX350, NX350h, NX450h+ (Except F Sport)
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Draw-Tite Class II 1-1/4 Inch Trailer Hitch Receiver fits Select Toyota RAV4, Lexus NX250, NX350, NX350h, NX450h+ (Except F Sport)
Due to the physical size and "Dimensional Weight", free shipping is not available for this item.
Product Details

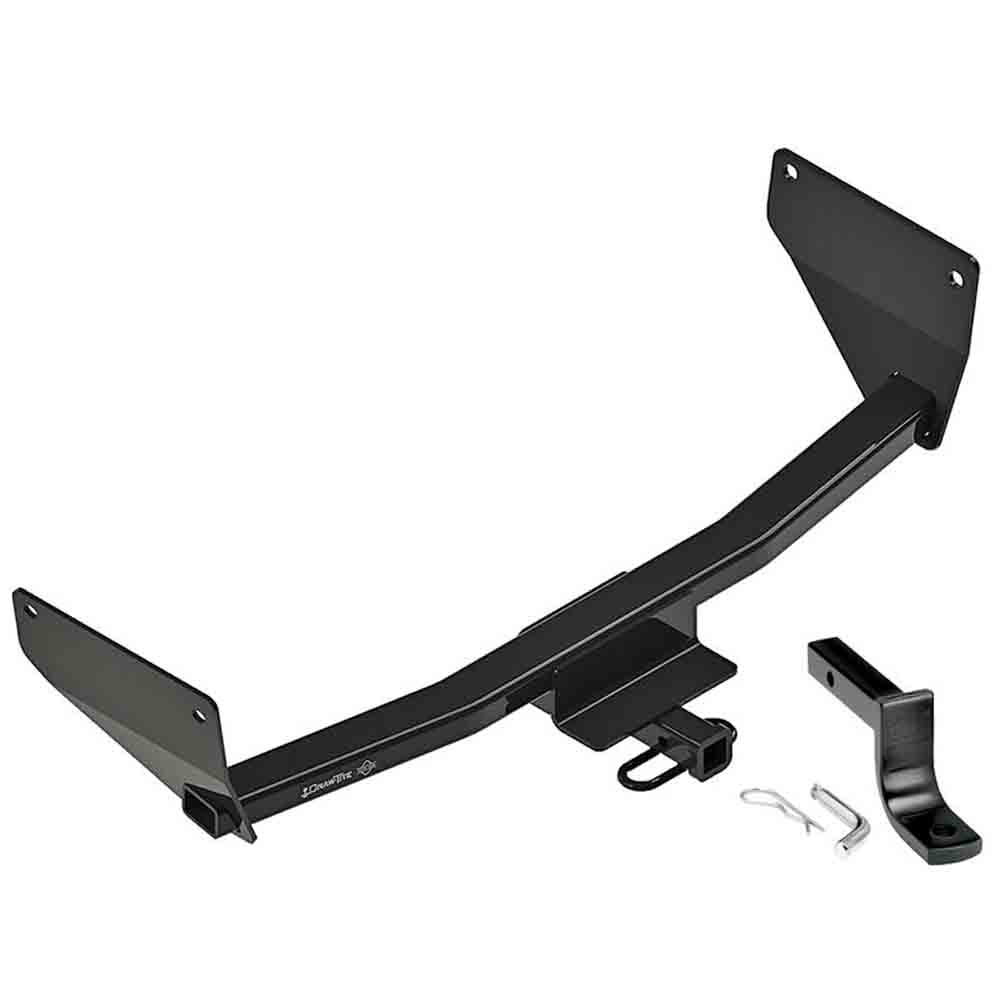

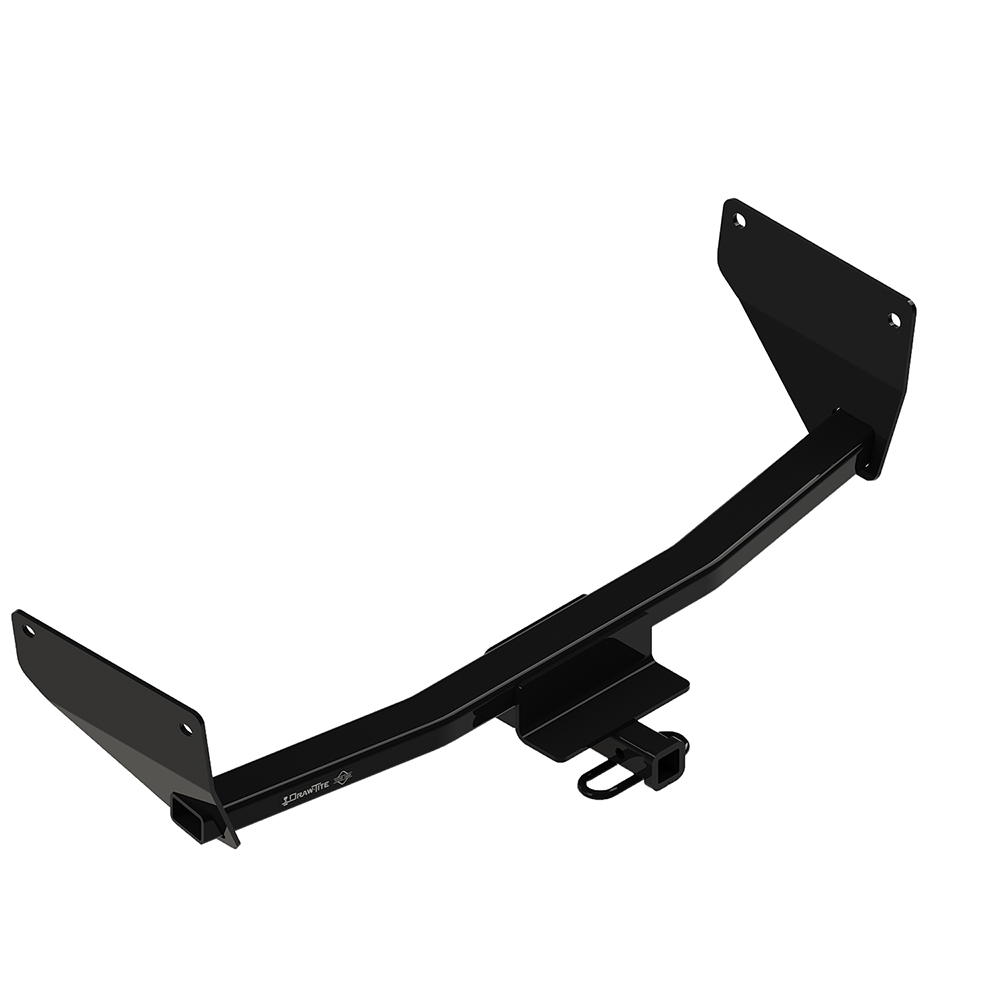

Class II hitches are Weight Carrying (WC) hitches rated up to 3,500 lbs. Gross Trailer Weight (GTW) with a maximum trailer Tongue Weight (TW) of 300 lbs. This style of hitch typically uses a 1-1/4" square receiver opening. The use of a drawbar and hitch ball of the same rating or higher is required. A drawbar, pin, clip and installation hardware are included. Class II hitches normally attach to the vehicle frame and or bumper. Always consult your owner's manual for vehicle rating.
- Uses all existing holes. No Drilling required on Toyota RAV4
- Drilling is required for installation on Lexus models
- Exterior mounted plug on some or all models. May require an aftermarket electrical mounting box or bracket. (Sold separately)
Optional Accessories
- Custom Fit T-Connector for 2019-2023 Toyota RAV4 Wiring Light Kit P/N 118801
- Custom Fit Rigid Hitch Brand T-Connector for 2019-2023 Toyota RAV4 Wiring Light Kit P/N RE-67434
- Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 1-1/4 inch |
| Gross Towing Weight (WC) | 3,500 lbs. |
| Tongue Weight | 300 lbs. |
| Hitch Class | Class II |
| Finish | Black Powder Coat |
| Installation Time | 35 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2024 | Lexus | NX250 | Rear Mounted Receivers | All Models |
| 2024 | Lexus | NX350h | Rear Mounted Receivers | All Models |
| 2024 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
| 2024 | Lexus | NX350 | Rear Mounted Receivers | Except F Sport |
| 2024 | Lexus | NX450h+ | Rear Mounted Receivers | Except F Sport |
| 2023 | Lexus | NX250 | Rear Mounted Receivers | All Models |
| 2023 | Lexus | NX350h | Rear Mounted Receivers | All Models |
| 2023 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
| 2023 | Lexus | NX350 | Rear Mounted Receivers | Except F Sport |
| 2023 | Lexus | NX450h+ | Rear Mounted Receivers | Except F Sport |
| 2022 | Lexus | NX250 | Rear Mounted Receivers | All Models |
| 2022 | Lexus | NX350h | Rear Mounted Receivers | All Models |
| 2022 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
| 2022 | Lexus | NX350 | Rear Mounted Receivers | Except F Sport |
| 2022 | Lexus | NX450h+ | Rear Mounted Receivers | Except F Sport |
| 2021 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
| 2020 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
| 2019 | Toyota | RAV4 | Rear Mounted Receivers | All Models |
