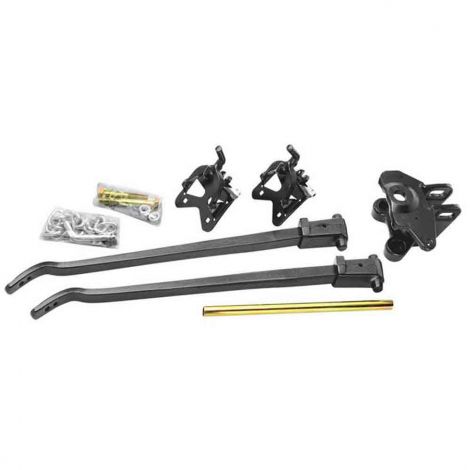

Reese Titan, Trunnion Bar Weight Distribution Kit Without Shank, 17,000 lbs. Towing Capacity, 1,700 lb. Tongue Capacity

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
- Rated up to 10,000/1000 lbs. weight carrying and 17,000/1700 lbs. weight distributing
- Elevated hitch ball platform provides superior coupler clearance
- Lift brackets designed to provide increased frame clearance
- Assembly hardware and chains included
- 2-1/2"" shank sold separately
- Trunnion style Weight Distributing Kit with integrated cams for use with Dual Cam Sway Control
- Perfect for use with horse trailers and RV's with Heavy Tongue weights, great for agricultural, marine and recreational use
- Adjustable hitch bar sold separately
WARNING: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.
Product Details
Designed for loads beyond normal everyday towing situations, Reese Titan Weight Distributing Hitch Systems provide a trunnion-design with the highest rating available in the towing industry. Coupled with a 2-1/2" Class V Titan Receiver, heavy loads are transported with ease. Ideal for commercial and industrial use.
Elevated hitch ball platform provides superior coupler clearance. Lift brackets designed to provide increased frame clearance. Assembly hardware and chains included.
- Requires hitch ball with 1-1/4" diameter shank - sold separately. Click Here to see all 1-1/4" shank hitch balls.
- Requires a heavy duty shank / hitch bar - sold separately. Click Here to see all weight distributing shanks.
- For use with Class V hitches
- Rated up to 10,000/1,000 lbs. weight carrying and 17,000/1,700 lbs. weight distrubuting
- Elevated hitch ball platform provides superior coupler clearance
- Lift brackets designed to provide increased frame clearance
- Assembly hardware and chains included
Specifications
| Brand | Reese |
|---|---|
| Ball Hole Size | 1-1/4 inch |
| Finish | Black Powder Coat |
| Gross Towing Weight (WC) | 17,000 lbs. |
| Tongue Weight | 1,700 lbs. |
| Warranty | Limited Lifetime Warranty |
