Tekonsha Tail Light Converter with Integrated Overload and Circuit Protection - 4-Flat Connector

Tekonsha

SKU
119178
List Price: $72.95
$44.99
Out-Of-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

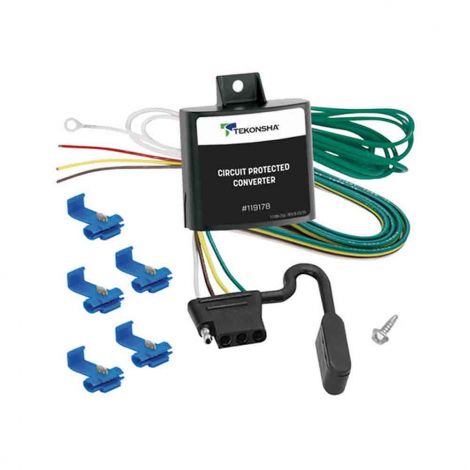

Tekonsha 119178 Tail Light Converter with Integrated Circuit Protection - 4-Flat Connector

Works on either incandescent bulbs or LED bulbs.

Product Details

Tail Light Converter w/12" Leads and 60" 4-Flat Car End Connector, has integrated re-settable Short Circuit and Overload protection to safeguard itself and the tow vehicle from shorts and installation wiring mishaps. Adapts import and domestic vehicles with separate turn and stop lights (3 wire system) to standard trailer taillight wiring (2 wire system). Will work with either LED/Incandescent bulbs (vehicle & trailer).

  • Will work with either LED or standard incandescent bulbs
  • Rated for up to 2.1 amps for Turn/Stop circuits and 7.5 amps for Taillight circuit
  • Designed to prevent feedback to the vehicle circuits and components
  • Adapts import and domestic vehicles with separate turn and stop lights (3 wire system) to standard trailer taillight wiring (2 wire system)
  • Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
  • All solid-state components in potted encapsulation
  • Will not work with vehicles with low-side switch
  • Includes integrated protective cover

Specifications

Specifications
Brand Tekonsha
Polarity Sensitive Yes
Length 60 inch
Warranty Limited 1 Year Warranty
Style Of Connection 4-Flat
Voltage 12V DC
Style Powered

Instructions

CLICK HERE
