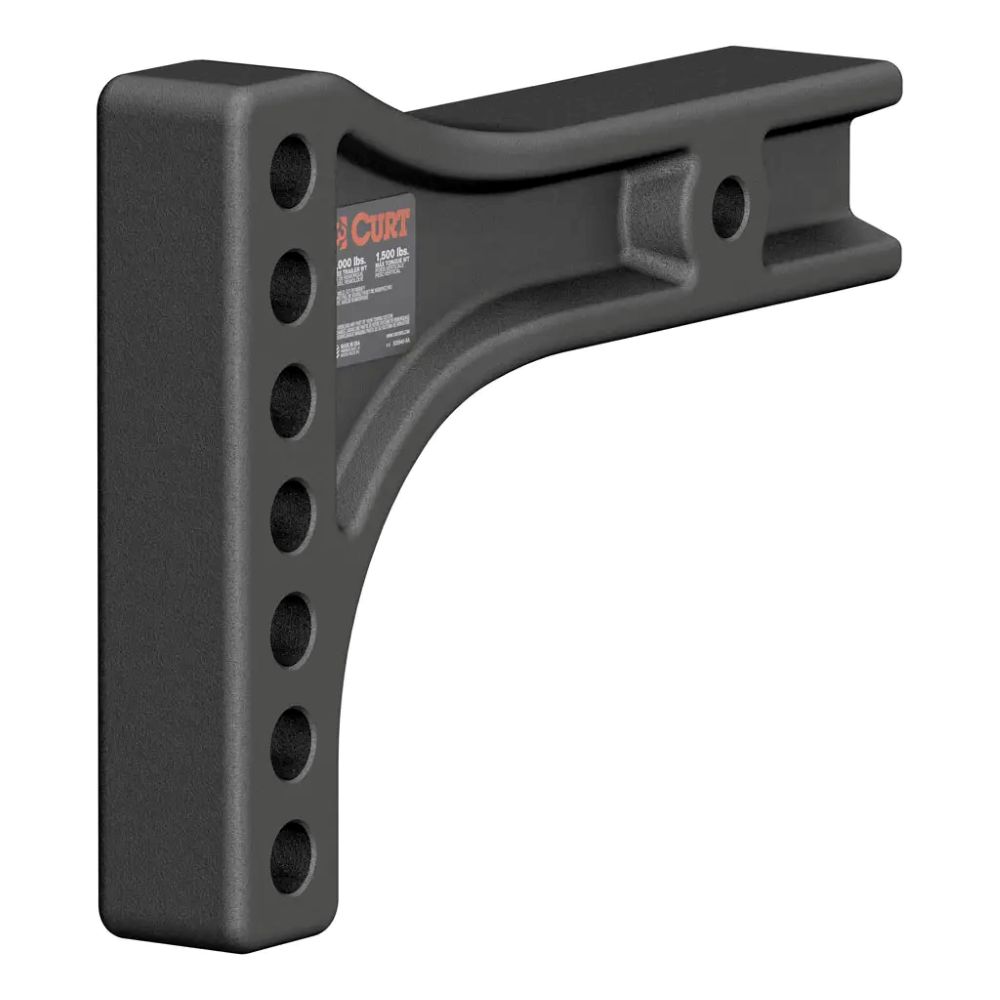

Weight Distribution Shank (2-1/2" Shank, 2" Drop, 6" Rise)

Weight Distribution Shank (2-1/2" Shank, 2" Drop, 6" Rise)

A CURT weight distribution hitch gives you stable, controlled towing for your vehicle and trailer by redistributing the weight at the coupling point and leveling the entire vehicle-trailer combination. All weight distribution hitches use an adjustable shank to mount onto the receiver hitch on your vehicle, giving you the ability to find the exact height needed for each trailer load.

This CURT replacement weight distribution shank is compatible with all CURT weight distribution hitches. It can be used to replace a damaged shank or to give your WD hitch greater flexibility in vertical adjustment. It features a standard 2-1/2" shank, multiple mounting options and a high-strength construction that is fully tested for tough jobs and harsh conditions.

The 2-1/2" horizontal shank is designed to fit any 2-1/2" x 2-1/2" trailer hitch receiver. This makes it the perfect choice for a CURT Commercial Duty class 5 hitch or other heavy-duty hitches with 2-1/2" receivers. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8" diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver.

This particular weight distribution shank is 9-1/2" high by 12-1/2" long, measured from the outermost holes center-to-center. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 9-1/2", this WD shank provides a maximum rise of 6". The entire shank can also be flipped in the receiver tube to provide a maximum drop of 2".
