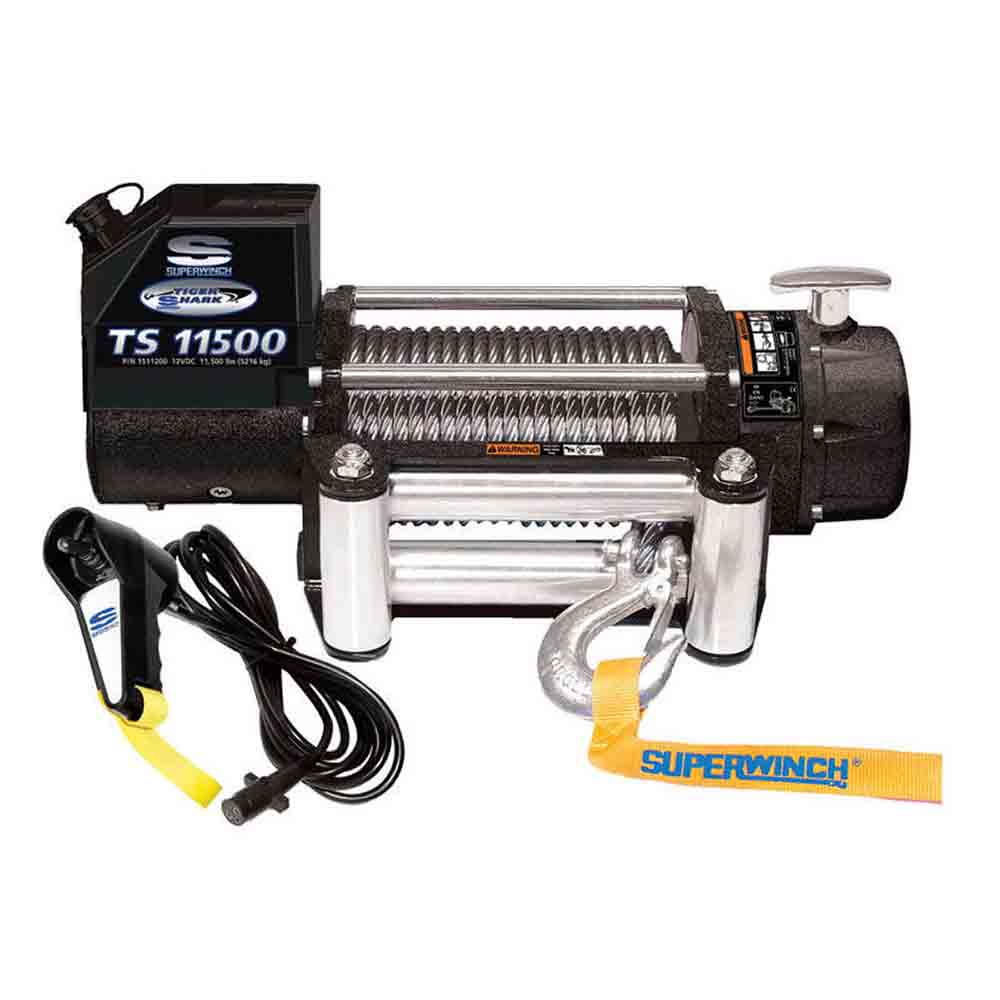

Superwinch (1511200) 11,500 lbs. Capacity Tiger Shark Series Winch - Model TS11500

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Product Details
Superwinch is redefining the entry level winch market with the new Tiger Shark Series with "Standard Issue" features and benefits designed for the enthusiast-level consumer. Created from everything we have already learned over the past 40+ years, the Tiger Shark brings unmatched functionality, quality and value. Perfect for Off-Road, recovery and utility applications
- 3-stage planetary gearing
- Gear Ratio - 218:1
- Weather sealed solenoid
- Freespooling clutch: ergo, pull and turn
- Brake: mechanical, automatic load holding
- Hook: heavy duty/clevis pinned/latched
- 12 foot rubber hand held remote control
- Dimensions - 20.83 inch L x 6.3 inch W x 9.23 inch H
- Drum diameter: 2-1/2 inch
- Drum length: 9 inch
Specifications
Brand | Superwinch |
---|---|
Cable Length | 3/8 inch x 85 feet |
Cable Material | Wire Rope |
Fairlead | 4-Way Roller |
Line Pull | 11,500 lbs. |
Line Speed | 19 ft. per min. |
Motor | 6.0 HP |
Motor Amp Draw | 410 amps 12V |
Warranty | Limited Lifetime Mechanical, 7 Year Limited Electrical |
Mounting Bolt Pattern | 10 inch x 4-1/2 inch |
Gear Ratio | 218:1 |
