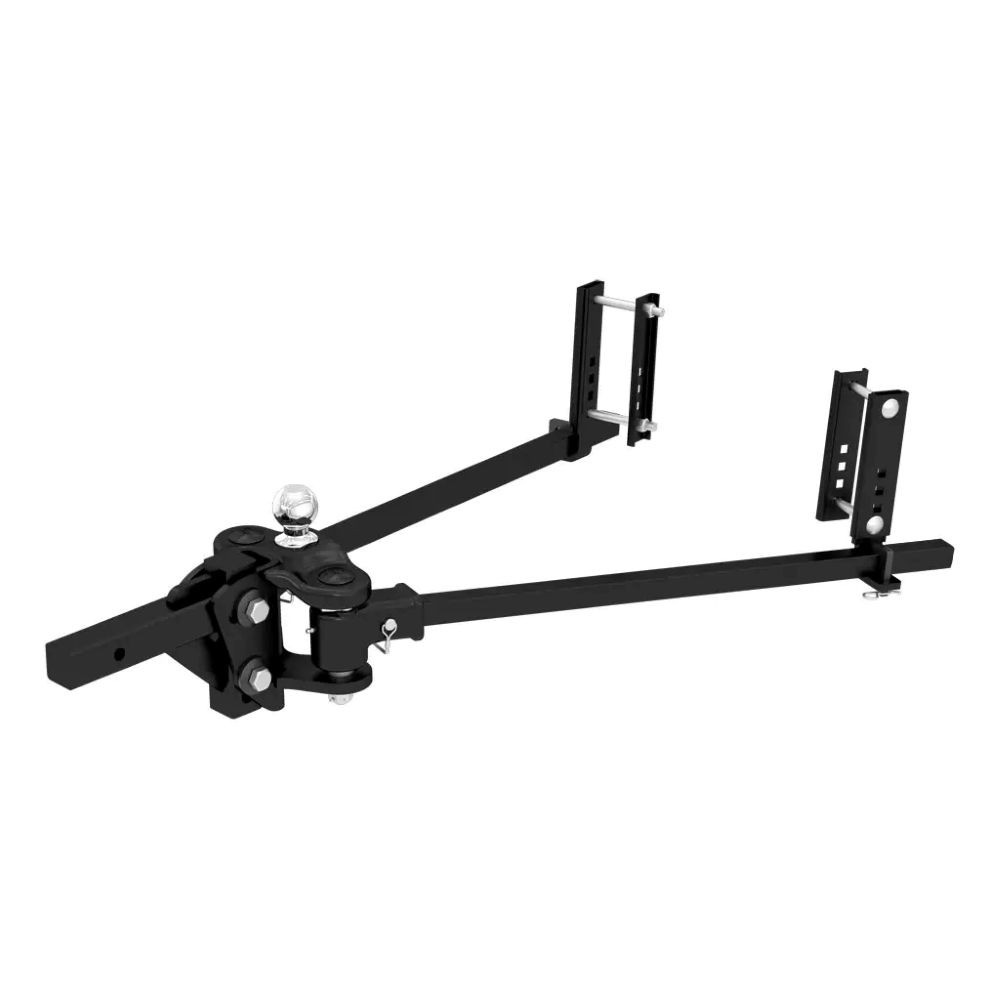

TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible.

The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned.

Product Details

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Four points of sway control work together to keep trailer aligned
  • Welded head with cast pieces provides solid spring bar attachment
  • Uses spring & cam system with hardened components, instead of metal friction
  • Adjustable brackets provide fixed support unlike spring bar chain models
  • Brackets use friction to resist lateral movement, replacing a sway control
  • 2" shank can be flipped to provide necessary drop or rise
  • Hex castle nut allows for easy adjustment for different trailers
  • Fits virtually all A-frame trailers, featuring two neutral spring bar settings
  • Carbide black powder coat, black-oxide-plated cams and stainless steel balls
  • Includes a pre-torqued 2-5/16" trailer ball
  • Includes shank, trailer ball, spring bars, head, support brackets, pin & clip
  • Limited lifetime warranty (one-year finish, one-year parts)

Notes:

  • Springs bars can be adjusted to 30 or 70 degrees (+/- 5)
  • Capacity limited to lowest rated towing component (Lowest hole in shank cannot be used in drop position)
  • Apply grease to all lubrication points before first use
  • Adhere to the maintenance schedule provided in your users manual
WARNING: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.


Specifications

Specifications
Brand Curt
Dist Gross Trailer Weight (WD) 15,000 lbs.
Dist Tongue Weight 1,500 lbs.
Finish Carbide Black Powder Coat
Shank Size 2 inch
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
