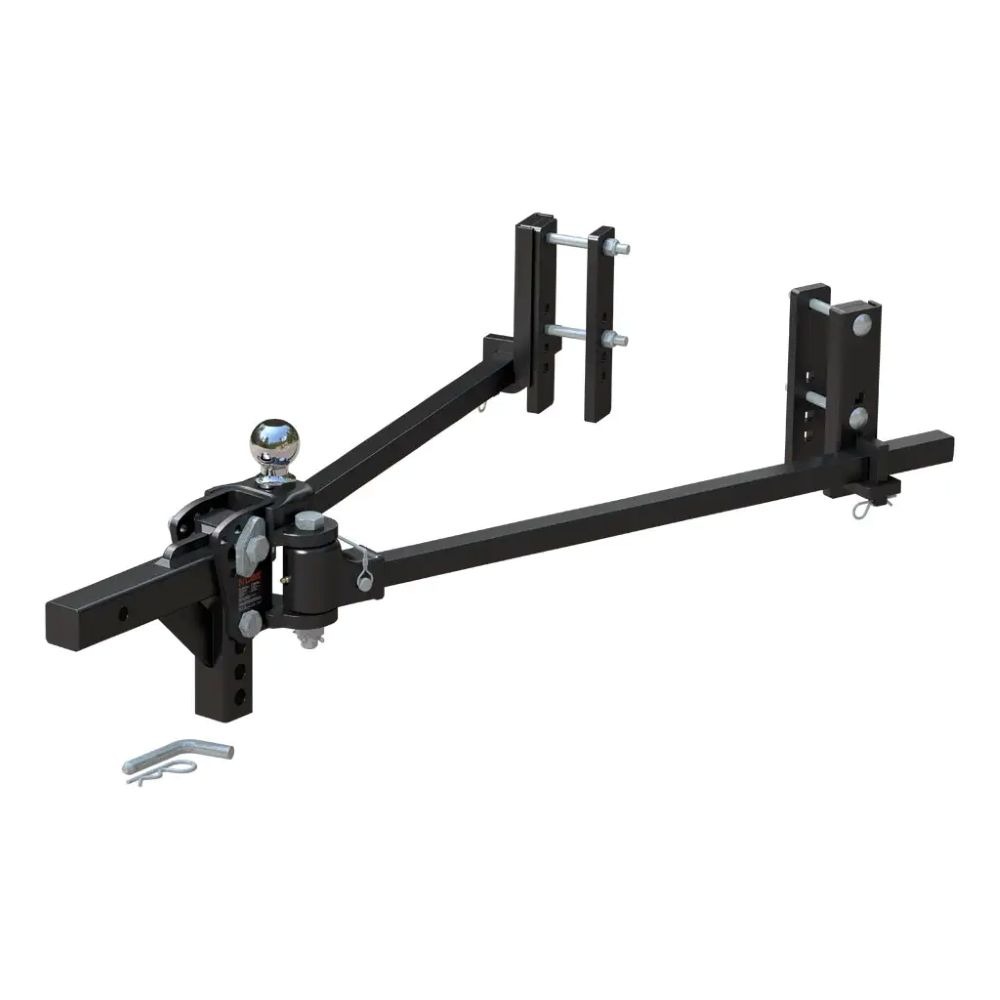

TruTrack 2P Trunnion Weight Distribution Hitch with 2x Sway Control, 8-12K
While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with passive sway control to deliver a smoother, safer ride.
The TruTrack 2P features a unique spring bar attachment system. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned.
Product Details
- Two points of sway control use friction to keep trailer aligned
- Integrated sway control reduces sway and levels the vehicle and trailer
- Rated for 8,000 to 12,000 lbs. GTW / 800 to 1,200 lbs. TW
- Head tilt adjustment feature simplifies setup and eliminates the need for washers
- Adjustable brackets provide fixed support unlike spring bar chain models
- Brackets use friction to resist lateral movement
- Heavy-duty, fabricated head can be used for precise leveling
- Equipped with durable, forged steel spring bars for reliable strength
- 7-hole, 2" shank can be flipped for maximum adjustability
- Protected by a durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes trailer ball and shank
- Capacity limited to lowest rated towing component
Specifications
| Brand | Curt |
|---|---|
| Dist Gross Trailer Weight (WD) | 12,000 lbs. |
| Dist Tongue Weight | 1,200 lbs. |
| Shank Size | 2 inch |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
