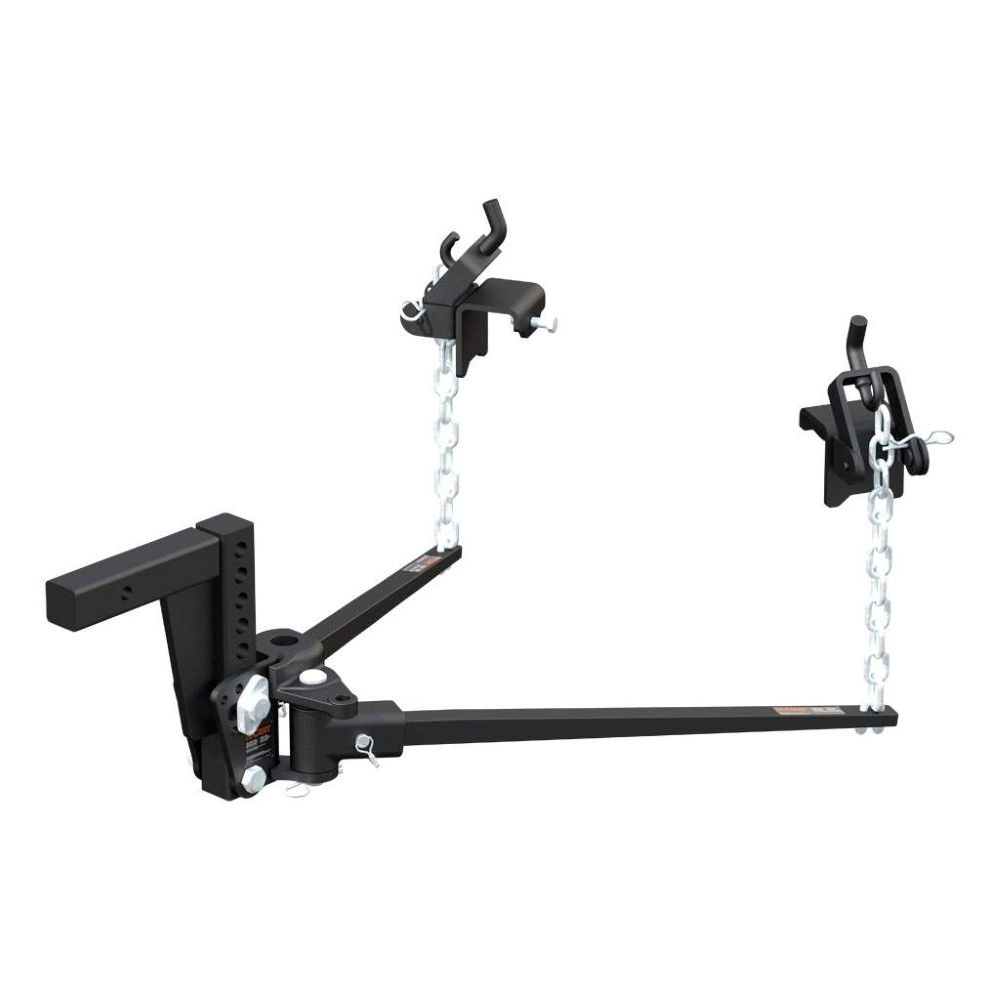

Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars)
The CURT deep drop weight distribution hitch is ideal for full-size or lifted trucks, featuring a highly adjustable shank. It comes with a 2" x 2" shank to fit most class 3, 4 and 5 hitches, and the shank allows the head to be raised up to 10-1/2" or dropped as low as 7" below the receiver. This deep drop weight distribution hitch is rated for up to 10,000 lbs. gross trailer weight. NOTE: Trailer ball and sway control sold separately.
Product Details
- Levels tow vehicle and trailer by redistributing a portion of the tongue weight
- 2" x 2" deep drop shank for level towing with large, lifted trucks
- Shank can be flipped to provide up to 7" drop or 10-1/2" rise
- Equipped with 30-5/8" trunnion-style, forged steel spring bars
- Heavy-duty, formed head can be adjusted for precise leveling
- Features built-in sway control attachment tabs
- 2-1/2" x 2-1/2" WD replacement shank also available
- Tilt adjustment feature simplifies setup and installation
- Hookup brackets and lift handle allow for easy leveraging of spring bars
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes shank, spring bars, head, hookup brackets, pin & clip
- Trailer ball not included
Specifications
| Brand | Curt |
|---|---|
| Dist Gross Trailer Weight (WD) | 10,000 lbs. |
| Dist Tongue Weight | 1,000 lbs. |
| Finish | Carbide Black Powder Coat |
| Shank Size | 2 inch |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
