Combination Pintle Hook with 2-5/16 Inch Ball, Mounting Plate and Hardware, fits 2" Receiver Hitch
** Overall pound capacity is limited to the lowest rated part in the assembly **
Product Details

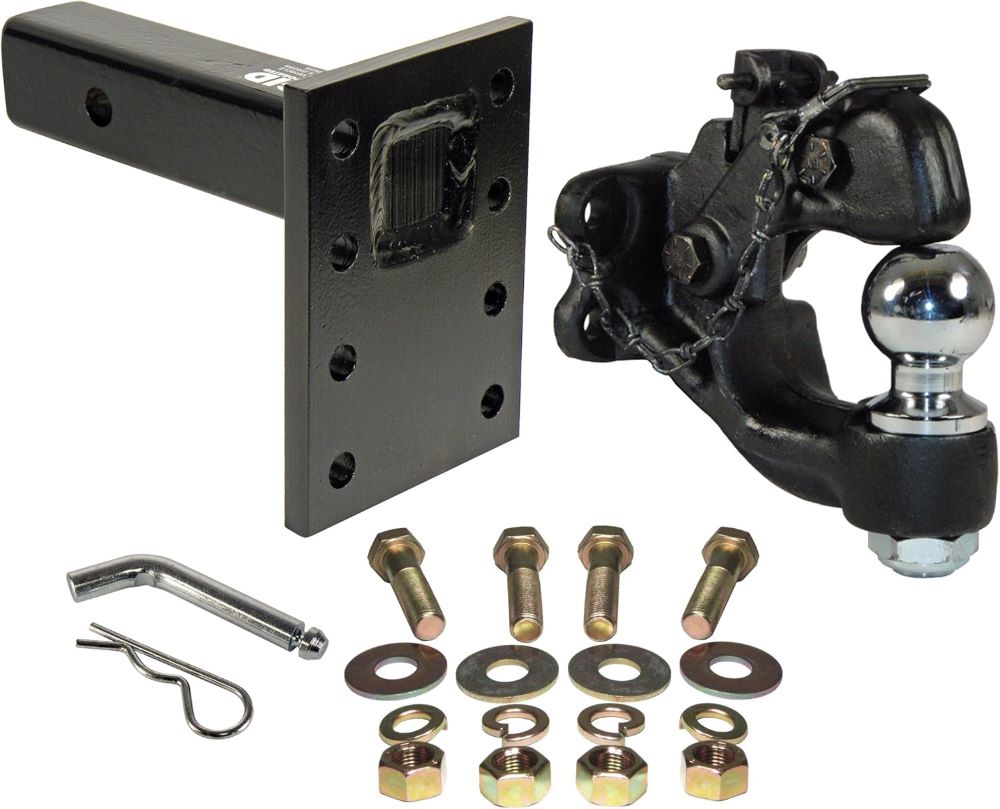

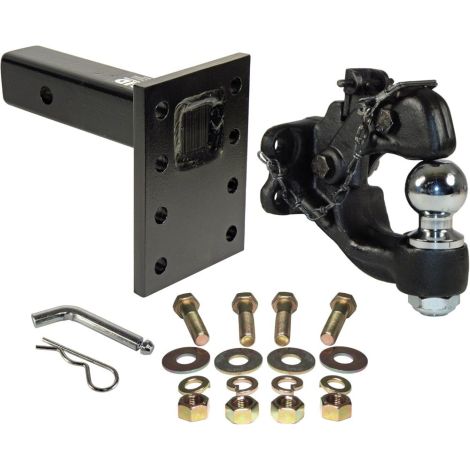

The combination pintle hook is equipped with 2-5/16 inch chrome ball with positive locking latch and tethered pin.
15,000 lbs gross trailer weight rating for Pintle Hook / 3,000 lbs tongue weight rating.
10,000 lbs. gross towing capacity for 2-5/16" hitch ball.
Also included are four grade 8 bolts, nuts and washers to attach the pintle hook to the mounting plate and a 5/8 inch diameter pin and clip for mounting the assembly in any 2 inch receiver.
- Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
- Provides mounting for both ball and pintle or rigid type Pintle Hooks
- Pintle mount - black powder coat finish / Pintle hook - black painted finish
- Pintle hook has the standard bolt hole configuration - 1-3/4 inch x 3-3/8 inch
- 2-5/16 inch ball can be interchanged
- Drop forged construction
- All products in this assembly are Made in U.S.A.
WARNING: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Rigid Hitch |
|---|---|
| Ball Diameter | 2-5/16 inch |
| Finish | Black Powder Coat |
| Fits | 2 Inch Receivers |
| Gross Towing Weight (WC) | 15,000 lbs. |
| Height C | 7 inch |
| Height G | 1-3/4 inch |
| Hole E | 5/8 inch |
| Hole Sets | 4 |
| Made In | USA |
| Mounting Bolt Pattern | 1-3/4 inch x 3-3/8 inch |
| Shank Length A | 8-1/4 inch |
| Shank Length B | 2-1/2 inch |
| Shank Type | Solid |
| Tongue Weight | 1,500 lbs. |
| Width D | 5 inch |
| Width F | 3-3/8 inch |
