10 Ton Pintle Hook Combo Kit, Includes Mounting Plate and Hardware

Rigid Hitch

SKU
PH-10-10KIT
List Price: $142.15
$113.72
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

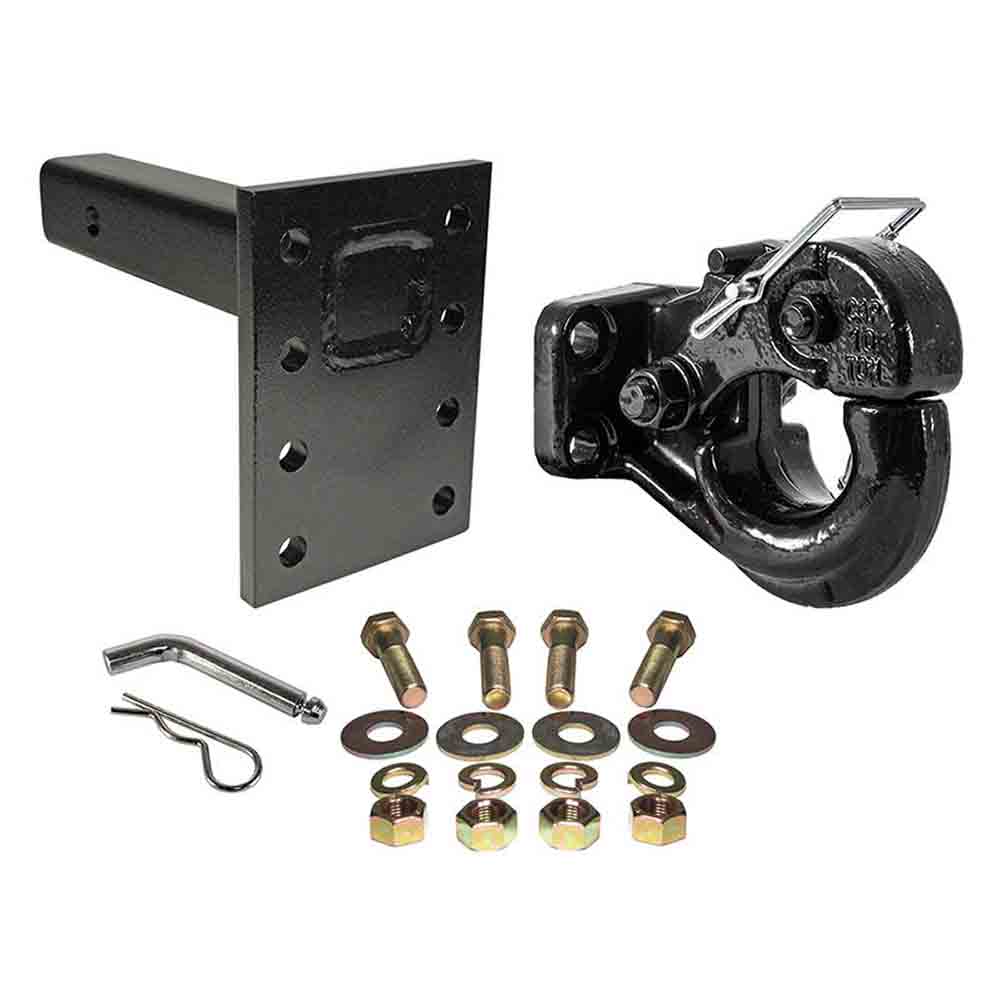

10 Ton Pintle Hook Combo Kit Includes - Pintle Hook (PH-10), Mounting Plate (RMP-10), Mounting Hardware (MK-128) and Pin & Clip (HP-1020)

Product Details

Solid shank pintle hook mounting plate for 2 inch receivers. See specifications below.

The 10 ton pintle hook is equipped with a tethered pin. 20,000 lbs gross trailer weight rating / 4,000 lbs tongue weight rating.  The pintle mounting plate is rated 15,000 lbs gross trailer weight and 1,500 lbs tongue weight.

Also included are four grade 8 bolts, nuts and washers to attach the pintle hook to the mounting plate and a 5/8" diameter pin and clip for mounting the assembly in any 2 inch receiver.

Please note: Pintle mount is rated for 15,000 lbs., pintle hook is rated for 20,000 lbs.

  • Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
  • Provides mounting for both ball and pintle or rigid type Pintle Hooks
  • Pintle mount - black powder coat finish / Pintle hook - black painted finish
  • Pintle hook has the standard bolt hole configuration - 1-3/4" x 3-3/8"
  • Drop forged construction
  • Pintle mount is made in U.S.A. - Pintle hook is made offshore

Specifications

Specifications
Brand Rigid Hitch
Finish Black Powder Coat
Fits 2 Inch Receivers
Height C 7 inch
Height G 1-3/4 inch
Hole E 5/8 inch
Hole Sets 4
Mounting Bolt Pattern 1-3/4 inch x 3-3/8 inch
Shank Length A 8-1/4 inch
Shank Length B 2-1/2 inch
Shank Size 2 inch
Shank Type Solid
Tongue Weight 1,500 lbs.
Width D 5 inch
Width F 3-3/8 inch
