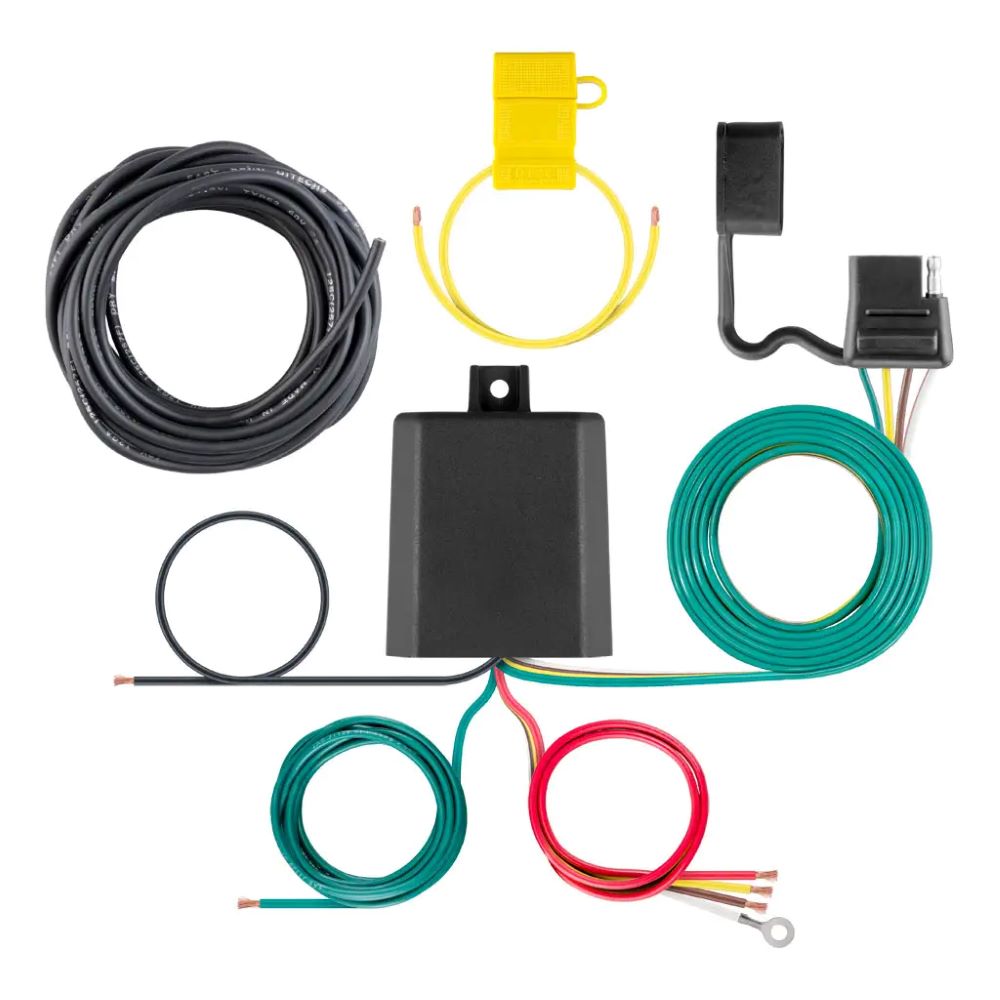

Multi-Function Trailer Hitch Taillight Converter Kit to 4-Way Flat Car End
The multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring.
The converter is controlled using a microprocessor that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation.
Product Details
- Converts 2-wire, 3-wire or PWM ST system to 2-wire trailer light wiring
- Potted enclosure significantly increases water and vibration resistance
- 4-way flat output connects tail lights, brake lights and turn signals
- Constructed with SMT circuitry for better performance and durability
- Microcontroller senses current to rapidly react to overload
- Low-voltage operation allows function down to seven volts
- Color-coded wires with wiring guide for easier installation
- Included wiring kit allows for a convenient connection to the vehicle battery
- Snap locks included for fast, secure splicing
- Dust cover included to keep connector clean when not in use
Notes:
Includes powered converter wiring kit #55152
WARNING: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Curt |
|---|---|
| Polarity Sensitive | Yes |
| Warranty | Limited 1 Year Warranty |
| Style Of Connection | 4-flat plug |
| Voltage | 12V DC |
