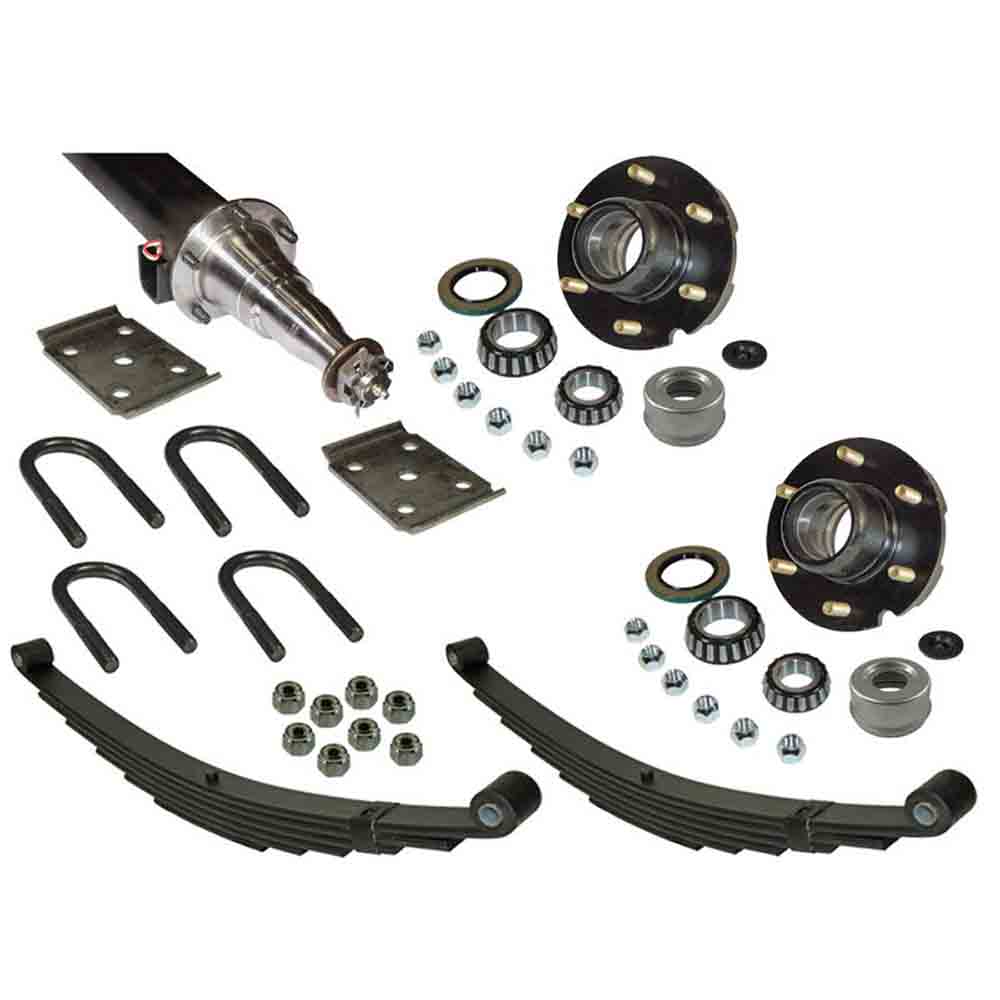

6,000 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 6 stud on 5-1/2" bolt circle hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.
Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
Includes (2) 6 on 5-1/2 inch studded hubs with bearings, seals and grease caps
Includes double eye springs with U-bolts, tie plates and lock nuts
1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
Axle includes flanges for mounting drum brakes (sold separately)
Specifications
Specifications
Brand
Lippert
Capacity
6,000 lbs.
Mount Width
60 inch
Overall Width
80 inch
Spring Dimensions
27 inch (eye to eye) x 1 3/4 inch
Spring Seats
Attached
Width At Hub Face
74 inch
