DROP AXLE TUBE - 3500 - 60IN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

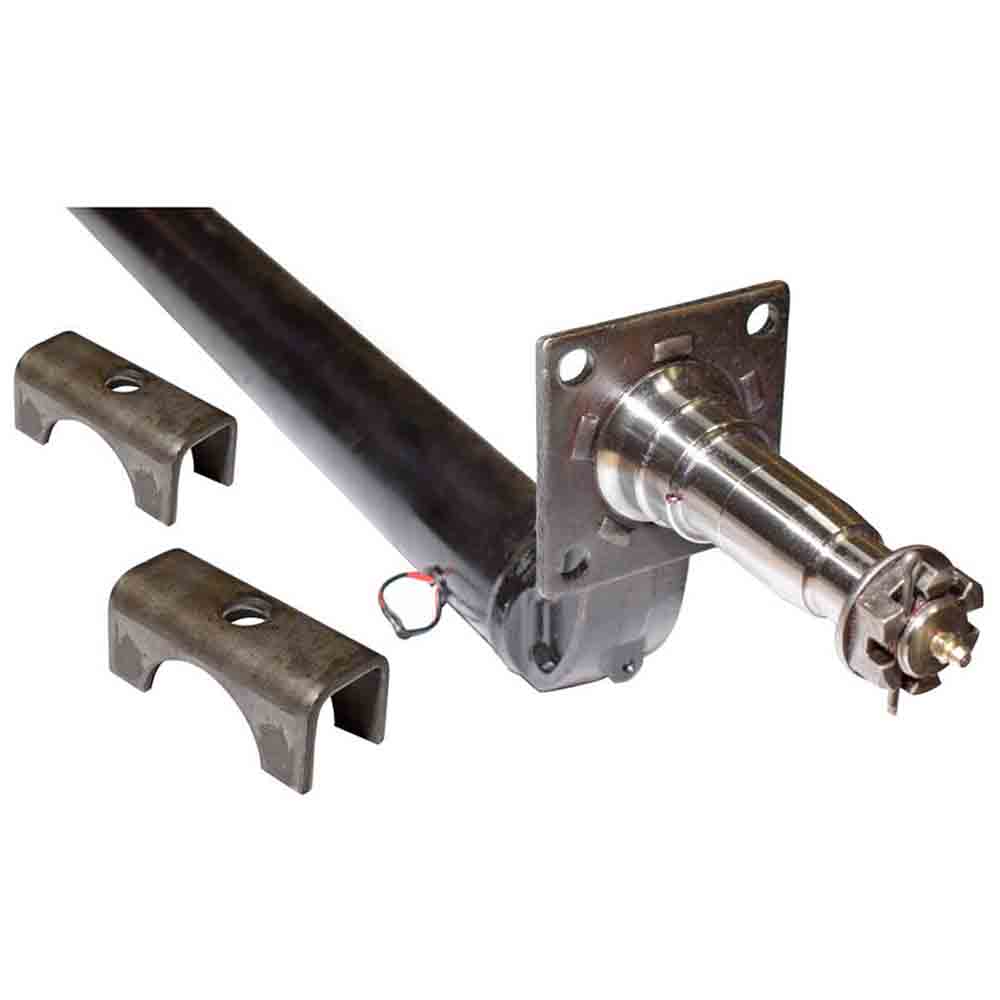

3,500 lb., 4" drop trailer axle tube with spindles, castle nuts and cotter pins. Axle is equipped with 4-bolt brake flanges for mounting electric or hydraulic brakes, sold separately. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
Spring seats are shipped loose and must be welded to the axle to complete the installation
1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand	Lippert
Brake Mounting Flange	4-Bolt
Capacity	3,500 lbs.
Mount Width	58 to 62 inch
Overall Width	78-1/2 inch
Spring Seats	Loose
Width At Hub Face	76 inch
