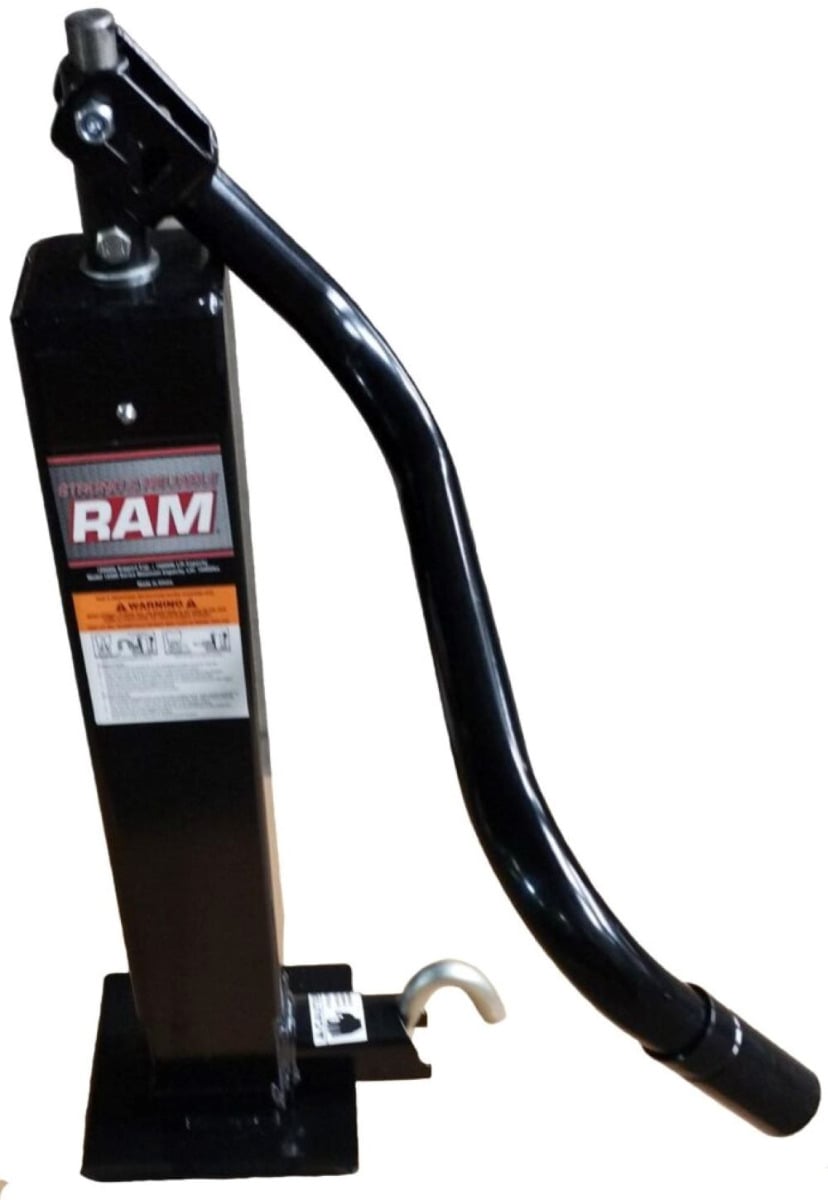

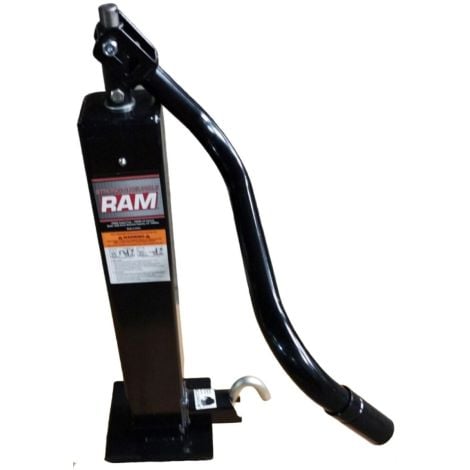

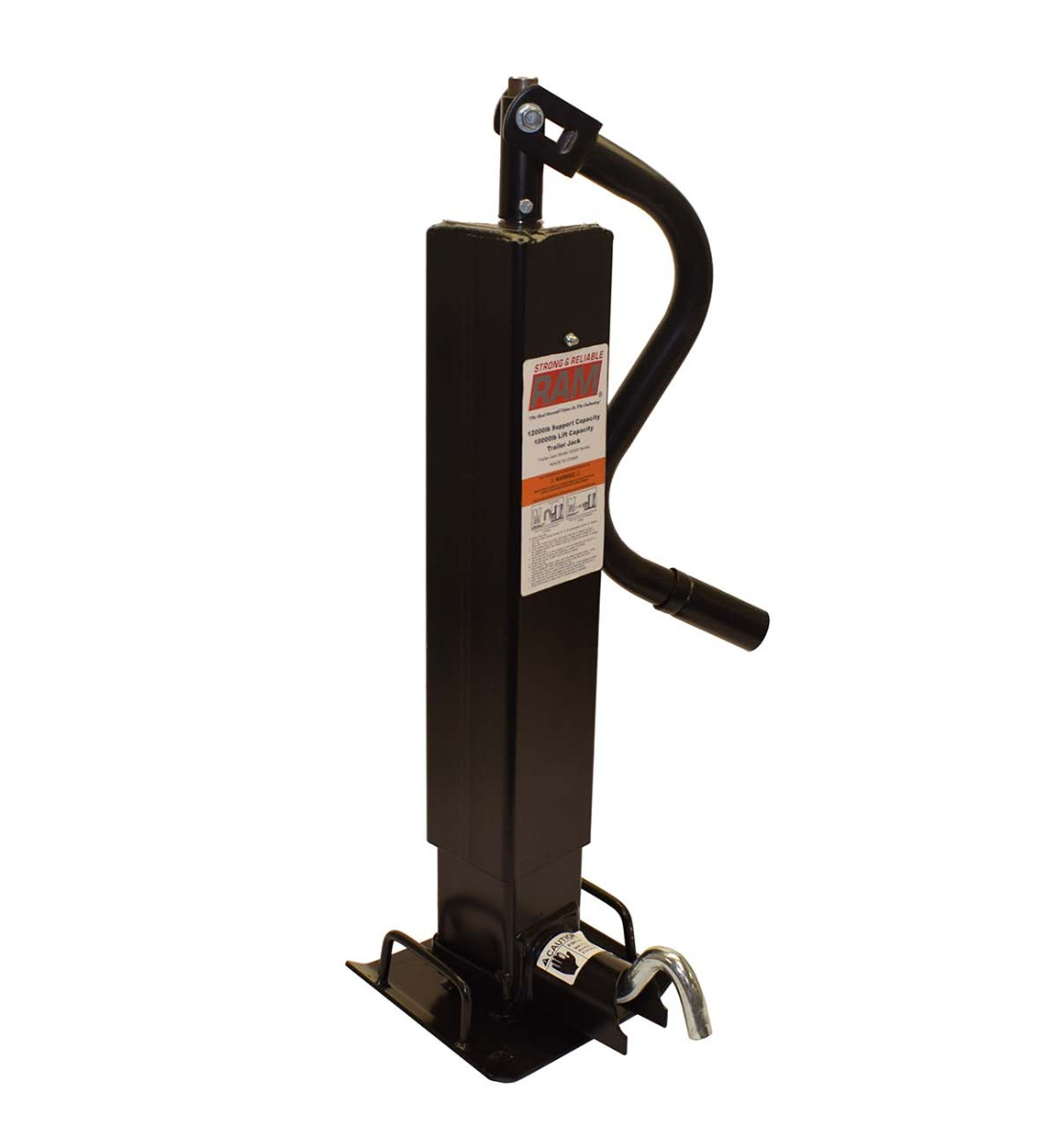

JACK - HD SQUARE TUBE - 12K - TOP WIND
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Square Tube Trailler Jack - 12,000 support Capacity, Topwind, 12-1/2 Inch Travel - Non Spring Return. Replaces HB-182304
Product Details
Strong, durable, and sturdy, 12,000 lbs. support capacity square jack. For Agricultural, construction, heavy-duty utility, and horse/livestock trailers. 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
4" square tubing, 7-gauge superior alloy steel
Painted outer tube, inner tube and drop leg
Drop leg option with 5 positioning holes.
Easy-access gear box with grease fitting for routine maintenance.
12.5" screw travel, 13.5" of additional adjustment with drop leg.
Top wind design includes crank handle and foot pad.
Mounting is done by direct weld
Specifications
| Brand | RAM |
|---|
