7" Trailer Hub & Drum Assembly W/ EZ Lube Grease Cap & Plug, 4 On 4" Bolt Circle, 1,250lb Capacity For 1-1/16" Straight Spindles (HD-700A-22-EZ)


List Price: $204.03
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

Trailer Hub and Drum for 1-1/16" Straight Spindles for a 2,200lb axle. For use with 7" electric or hydraulic brakes. Sold as Single with a 1,250lb Capacity per Hub. Complete assembly with Bearings, Seals, Dust Cap, Cotter Pin and Lug Nut.

Product Details

7" Hub and Drum has 4-bolt pattern on 4" circle for a 2,000lb axle with hub capacity of 1,250lbs. Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and measures 4-1/4" tall. 1/2"-20 lugs.

2" deep inside for use with 7" electric or hydraulic brakes.

* Grease seal may vary in construction (metal ring or rubber ring) - dimensions are the same and either version will work very well.

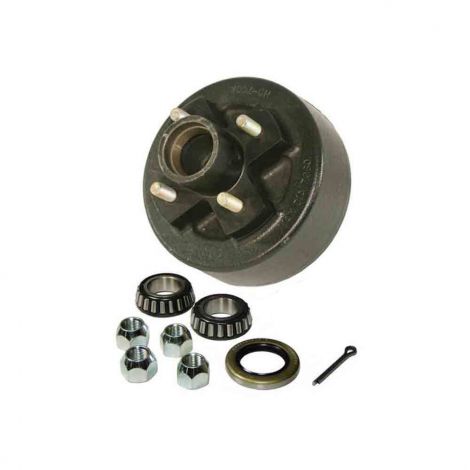

Hub assembly includes:

(2) L-44649 (1-1/16" I.D.) Inner and Outer Bearings,
SL-122 (1.25" I.D.) and SL-150-1 (1.50" I.D.) Grease Seals,
SCP-100 Cotter Pin,
EZ Lube Dust Cap & Plug
(4) STN-506 Lug Nuts (1/2"-20)

NOTE: This kit does not include the castle nut. You must use your existing nut for installation.


Brand TRP
