Trailer Hub and Drum Assembly - 4 on 4" Bolt Circle, 1,250lb Capacity for 1-1/16" ID Straight Spindles
SKU
HD-700A-22-A
List Price:
$166.95
Trailer Hub and Drum Assembly - 4 on 4" Bolt Circle, 1,250lb Capacity for 1-1/16" ID Straight Spindles
$123.85
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Trailer Hub and Drum for 1-1/16" Straight Spindles for a 2,000lb Axel. For use with 7" electric or hydraulic brakes. Sold as Single with a 1,250lb Capacity per Hub.

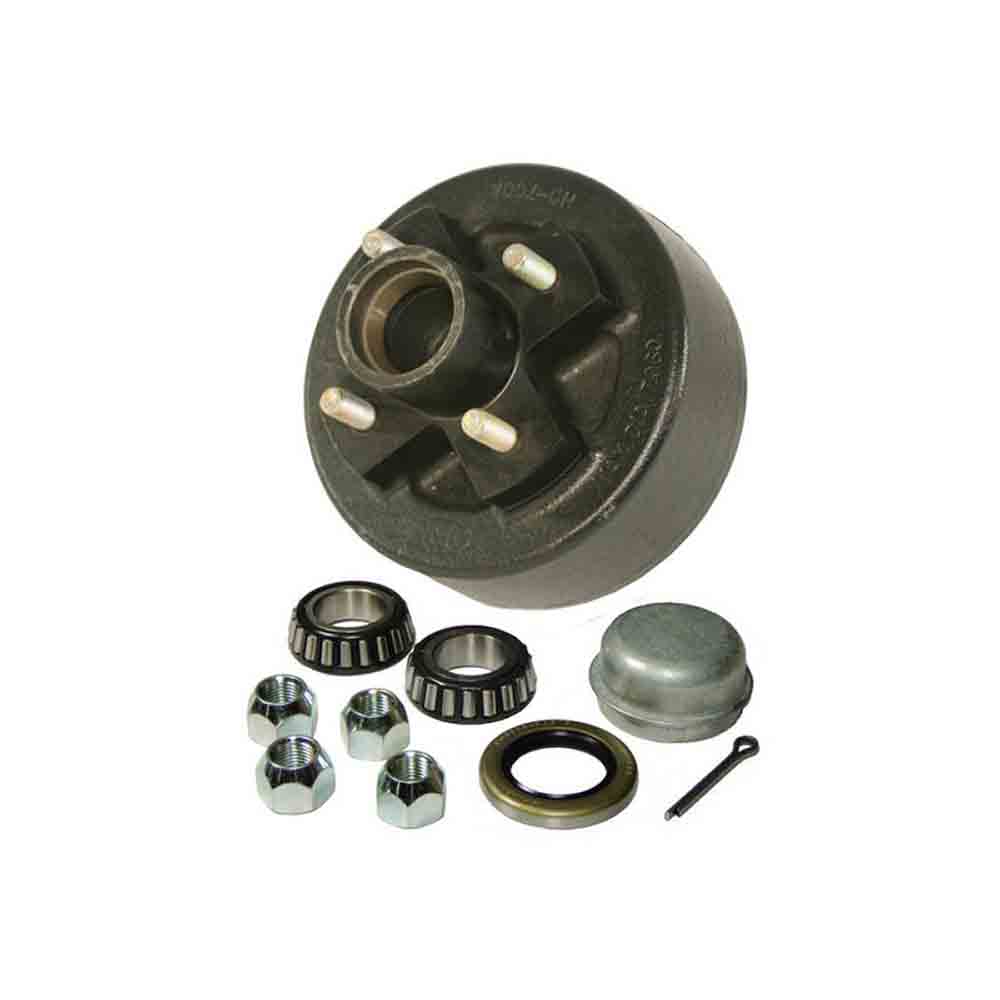

Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin and Lug Nuts
Product Details
7" Hub and Drum has 4 on 4" bolt circle for a 2,000lb axle with hub capacity of 1,250lbs. Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and measures 4-1/4" tall.
2" deep inside for use with 7" electric or hydraulic brakes.
This kit provides grease seals to work with axles that have 1.25" OR 1.50" seal surfaces.
* Grease seal may vary in construction (metal ring or rubber ring) - dimensions are the same and either version will work very well.
Hub assembly includes:
Specifications
| Brand | Reliable |
|---|---|
| Bolt Pattern | 4 x 4 |
| Capacity | 2,000 lbs. |
| Depth | 2 inch |
| Inside Diameter | 7 inch |
| Thread | 1/2-20 |
