Blue Ox BX1616 Baseplate fits Select Chevy & GMC S-10 & S-15 Models (see compatibility chart)

Blue Ox

SKU
BX1616
List Price: $596.95
491.90
Non-Stock FACTORY SHIPPED

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

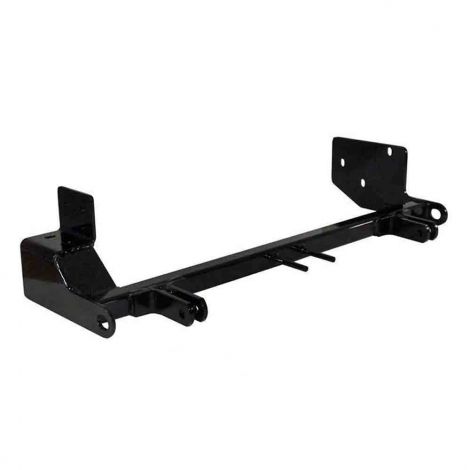

TOW BAR BASE PLATE-BLUE OX

Product Details

Blue Ox baseplates are easy on your suspension and even easier on the eye, because they are designed with hidden reinforcements. Vehicle specific baseplate is integrated into the individual bumper design of the towed vehicle.


Baseplate Footnotes - 7

Towed Vehicle Electrical, Brake System & Receiver and Tow Bar Locks are sold separately.

Baseplates are custom designed for each vehicle, bolting directly into the chassis.
Uses as many attachment points as possible.

  • Requires no welding
  • Baseplates are hidden beneath the vehicle body
  • All baseplates are backed by a three year limited warranty

Important Towability Note: Blue Ox offers the above baseplate for your vehicle, but how that vehicle is equipped (i.e. automatic transmission, 4-wheel drive, etc.) must be considered when determining its towability. Please read the owner's manual and/or consult your dealer to determine if your vehicle is flat towable and the correct towing procedures for your vehicle. Additional equipment such as a transmission pump or driveshaft disconnect may be required and are sold separately. Failure to comply with these requirements may result in damage to the towed vehicle or personal injury.



Specifications

Specifications
Brand Blue Ox
Baseplate Install Time 2 hours
Tab Type Standard
Tab Height 14 inch
Tab Width 24 inch
Made In USA
Warranty Three Years Limited
Suggested Wiring Bulb and Socket Tail Light Wiring Kit - BX8869

Instructions

CLICK HERE

Compatibility

Year Make Model Category Description
2004 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
2004 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
2003 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
2003 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
2002 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
2002 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
2001 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
2001 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
2001 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
2001 GMC Envoy Flat Tow Baseplates All Models
2000 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
2000 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
2000 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
2000 GMC Envoy Flat Tow Baseplates All Models
1999 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
1999 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1999 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
1999 GMC Envoy Flat Tow Baseplates All Models
1998 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
1998 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1998 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
1998 GMC Envoy Flat Tow Baseplates All Models
1997 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
1997 Oldsmobile Bravada Flat Tow Baseplates 4 Wheel Drive
1997 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
1997 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1997 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
1996 Oldsmobile Bravada Flat Tow Baseplates 4 Wheel Drive
1996 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
1996 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1996 GMC S-15 Jimmy Flat Tow Baseplates 4 Wheel Drive
1996 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
1995 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
1995 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1995 GMC S-15 Jimmy Flat Tow Baseplates 4 Wheel Drive
1995 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
1994 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
1994 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
