Air Lift Load Lifter 7500 XL Ultimate - Rear - fits Select Ram 3500

Air Lift

SKU
AL-57531
List Price: $890.95
$751.39
In-Stock

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

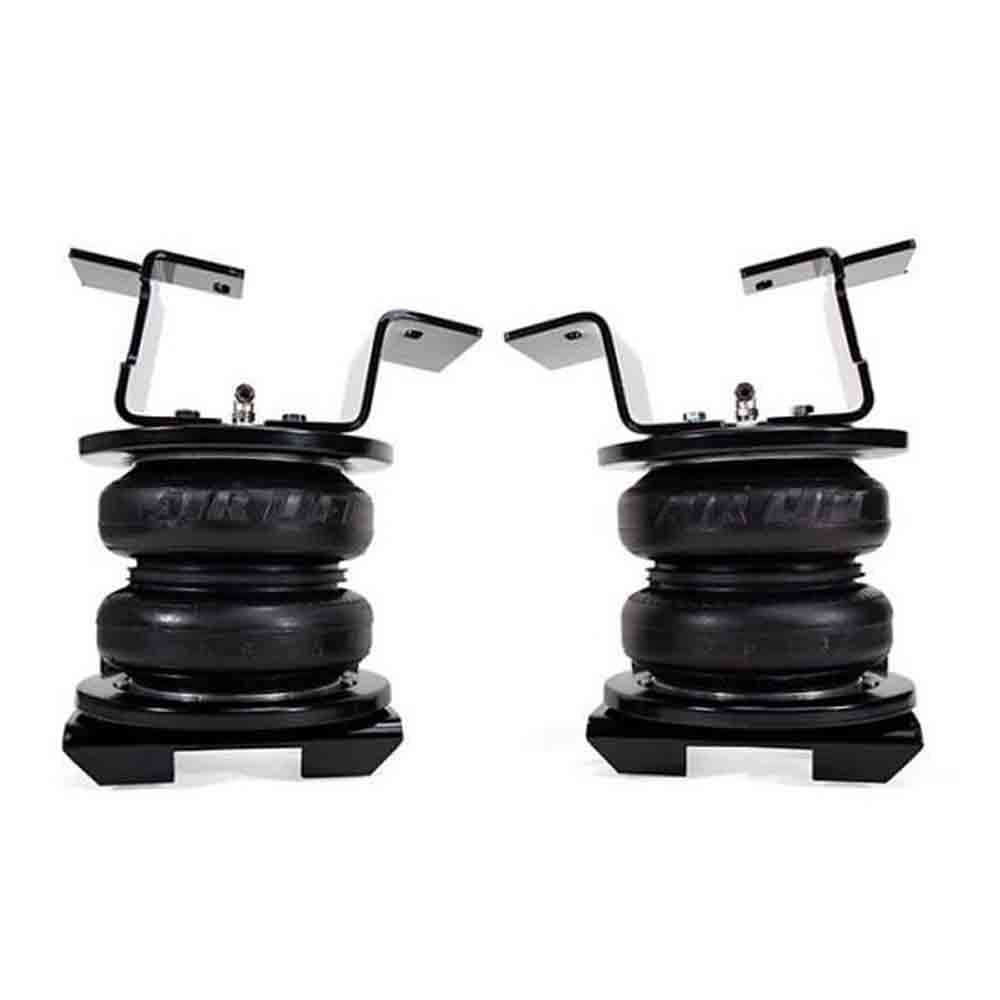

Air Lift Load Lifter 7500 XL Ultimate - Rear - fits Select Ram 3500

  • Up to 7,500 lbs. of load-leveling capacity
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Internal jounce bumper absorbs shock and can be safely ran with zero psi
  • Will not fit with factory optional air equipped vehicles
  • Doesnt fit cab and chassis

Product Details

Designed for 3/4 and 1-ton trucks, LoadLifter 7500 XL offers up to 7,500 lbs. of load-leveling capacity and is designed to support the largest loads on the road.

Greater leveling power - The available volume in our massive 7-inch double-bellows air springs enable greater leveling strength at lower pressures. This ensures maximum load-lifting abilities and a great ride quality no matter the load.

  • Up to 20% more air spring volume than LoadLifter 5000 air springs
  • Air Lift-exclusive upper and lower roll plates protect the air springs from possible abrasion and increase load capacity up to 10%
  • Most kits use the existing holes in the vehicle's frame for a bolt-on installation - no drilling required
  • Easy to install with illustrated installation manual
  • End caps made of ultra high-strength, corrosion-proof, nylon composite which is as strong as steel but weighs less and will not rust
  • All kits are compatible with most 5th wheel and gooseneck hitches









Specifications

Specifications
Brand Air Lift
Capacity 7,500 lbs.

Instructions

CLICK HERE

Compatibility

Year Make Model Category Description
2024 Ram 3500 Suspension 2 Wheel Drive
2024 Ram 3500 Suspension 4 Wheel Drive
2023 Ram 3500 Suspension 2 Wheel Drive
2023 Ram 3500 Suspension 4 Wheel Drive
2022 Ram 3500 Suspension 2 Wheel Drive
2022 Ram 3500 Suspension 4 Wheel Drive
2021 Ram 3500 Suspension 2 Wheel Drive
2021 Ram 3500 Suspension 4 Wheel Drive
2020 Ram 3500 Suspension 2 Wheel Drive
2020 Ram 3500 Suspension 4 Wheel Drive
2019 Ram 3500 Suspension 2 Wheel Drive
2019 Ram 3500 Suspension 4 Wheel Drive
