Dexter Disc Brake Actuator - 8,500 lbs. - Fits 2 Inch Ball
Replaced K99-285-20 and Tie Down Engineering #70523
Product Details

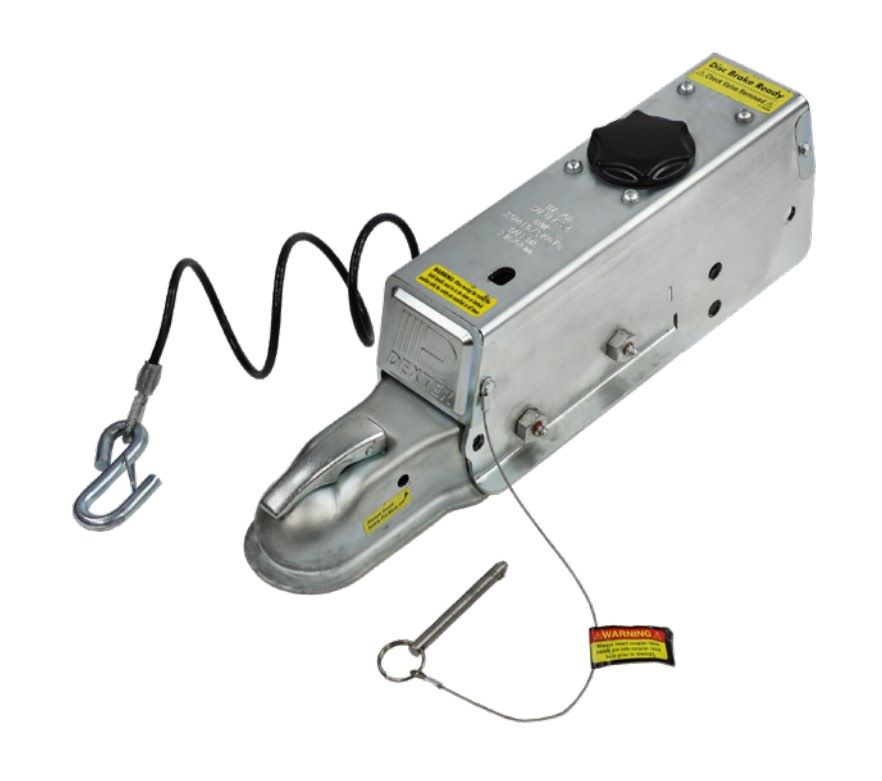

Introducing the new Dexter DX8.5 Disc Brake Actuator. (Formerly Tie Down Engineering 850E) Equipped with the new "Drop N Go" latch mechanism. The quick lock mechanism will automatically lock when lowered onto the hitch ball.
Fits 2" balls and mounts onto a 3" trailer frame. Bolt on design. Rated up to 8,500 lbs GTW with a maximum tongue weight at 850 lbs.
Replaced K99-285-20 and Tie Down Engineering #70523
Specifications
| Brand | Dexter |
|---|---|
| Brake Lockout | Included |
| Brake Style | Disc |
| Capacity | 8,500 lbs. |
| Channel Width | 3 inch |
| Finish | Zinc |
| Mounting Style | Bolt-On |
| Tongue Weight | 850 lbs. |
